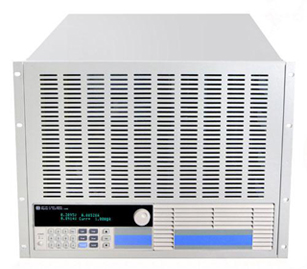

名稱:M9819(150V/240A/7.5KW)直流電子負載

型號:M9819(150V/240A/7.5KW)

產品特點

主要特點: 恒流,恒阻,恒壓,恒功率,恒流+恒壓,恒阻+恒壓六種高速動作模式; 過流,過壓,過功率,過熱,極性反接保護; 高亮度,真空VFD屏,雙排四路同步顯示; 電路軟啟動時間設定,可根據設定電壓值帶載; 電池測試及短路功能; 提供動態測試,上升下降斜率設定; 支持外部觸發輸入,輸出; 提供外部電流波形監視端子; 支持遠端電壓補償,多個數據存儲; 開機自檢,軟件校正,標準儀器架設計; 采用工業自動化的業界標準Modbus協議; 支持RS232,RS485,USB通訊。
  • 產品參數

Model


M9819

Input Rating

Power

7500W

Current

0-240A

Voltage

0-150V

CC Model

Range

0-24A

0-240A

Resolution

1mA

10mA

Accuracy

0.05%+0.05%FS

0.05%+0.05%FS

CV Model

Range

0.1-19.999V

0.1-150V

Resolution

1mV

10mV

Accuracy

0.03%+0.02%FS

0.03%+0.05%FS

CR Model(Voltage and current input value 10% )

Range

0.3Ω-2K

0.3Ω-5K

Resolution

16 bit

16 bit

Accuracy

0.1%+0.1%FS

0.1%+0.2%FS

CW Model(Voltage and current input value ≥10%FS )

Range

0-7500W

0-7500W

Resolution

1mW

10mW

Accuracy

0.1%+0.1%FS

0.1%+0.2%FS

V Measurement

Voltage

0-19.999V

0-150V

Resolution

1mV

10mV

Accuracy

0.03%+0.03%FS

0.03%+0.05%FS

I Measurement

Current

0-24A

0-240A

Resolution

0.1mA

1mA

Accuracy

0.1%+0.15%FS

0.1%+0.15%FS

W Measurement(Voltage and current input value ≥10%FS )

Watt

100W

75000W

Resolution

1mW

10mW

Accuracy

0.1%+0.1%FS

0.1%+0.2%FS

Battery Measurement

     Battery Input: 0.5-150V; Max.   Measurement: Capacity=999AH;    Resolution=0.1mA;  Time   Range=1S-16HS

Dynamic Measurement

Transition  List:  0-25kHZ; 5A/μS;  T1&T2: 60μS-999S;  Accuracy: + 15% offset+10% FS

CC soft-startup Time

10mS; 20 mS; 50 mS; 100 mS; 200 mS     Accuracy: + 15% offset+10% FS

Short Circuit

Current(CC)

26.4A

264A

Voltage(CV)

0V

Resistance(CR)

6mΩ

Temperature

Operating

040

Non-operating

–10℃~70

Dimension

W*H*D(mm)

489.5*357*538.5

Weight

Kg

65
