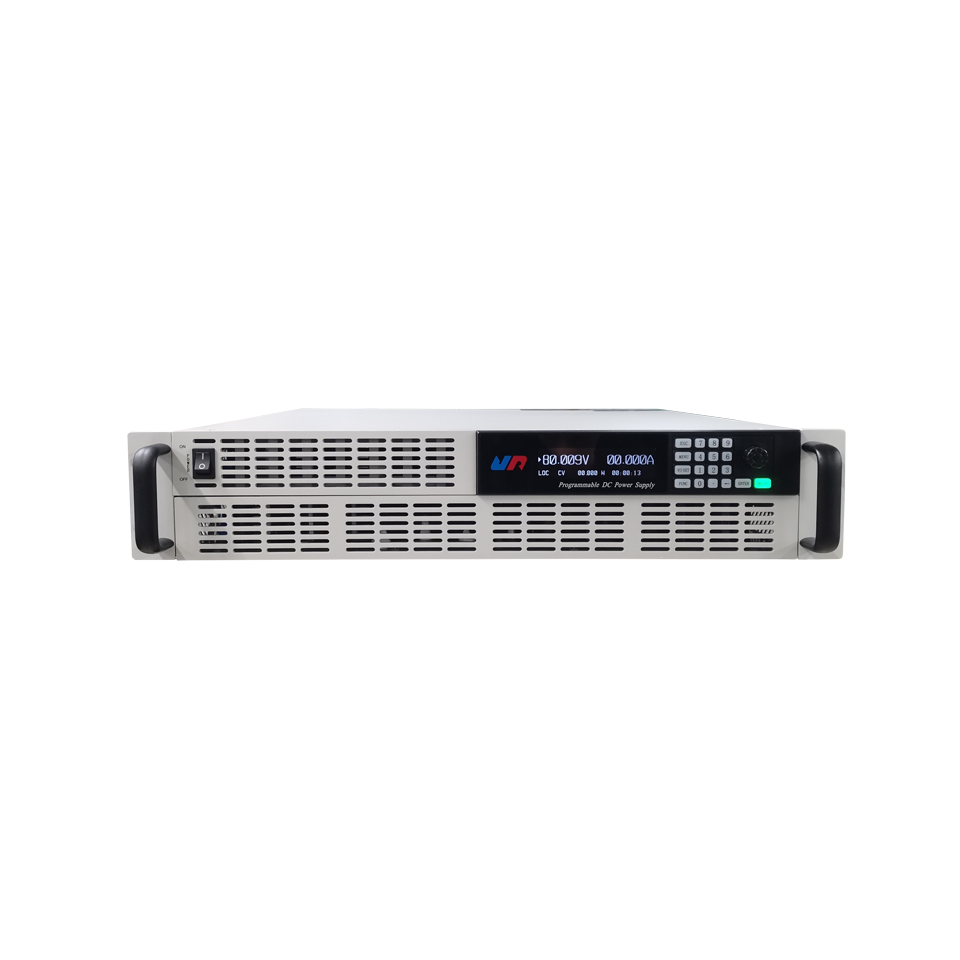

Name: DPS series ( Above 6.8KW)
Product characteristics
DPS series high-precision programmable DC power supply is a cost-effective product with high-quality, high-power-density, multi-function, launched by our company to meet the needs of our customers. It operates in the mode of multi-module
combined master-slave parallel connection. Disconnecting the parallel signal line of the faulty module will not affect the
normal operation of the whole machine, when any slave module fails. The maximum power of 1U model can reach 5KW, and
the weight is only 7.5Kg. The specification voltage of this series of products can reach up to 3050V, and the maximum current
can reach 525A. It built-in PFC power factor correction circuit, and the input voltage can meet the wide range of applications in
the global power grid. This series of power supply has constant voltage (CV) and constant current (CC) operating modes, and automatically switches
between operating modes. It also has built-in user-settable constant power (CP) limit mode, built-in analog program control
(5V/10V/5K/10K) signal, USB, LAN, CAN, RS-232/485 communication interface, and supports Modbus-RTU and SCPI industry
standard communication protocol. Users can enter the menu to select their own protocol and communication mode as
required.
